MIM

MIM is a new metal processing technology which combines advantages of both plastic injection & powder metallurgy, it is a rapidly developing PIM tech in the industry.

Application

With advantages compared to traditional powder metallurgy, machining or investment casting , MIM as a new technology is free of geometry design limitation and can provide batch production of complicated parts similar as that of plastic injection. MIM has a lot of applications such as automobile, consumer electronics, medical parts, tool parts, lock parts, telecommunications, etc…

Product Feature

1、MIM parts has high degree of freedom in shapes like plastic products, and complex metal parts can be produced at one time.
2、MIM products has uniform density, good finish, the surface roughness can be achieved Ra 0.80 ~ 1.6μm, weight range of 0.1 ~ 200g. Dimensional accuracy (± 0.1% ~ ± 0.3%), generally it has no follow-up processing.
3、MIM is applicable to a wide range of materials, wide application areas, high utilization of raw materials, a high degree of automation, simple process can achieve continuous mass production.
4、Stable quality, reliable performance, the relative density of products up to 95% to 98%, which can be carburizing, quenching, tempering and other heat treatment. Product strength, hardness, elongation are good.

Process

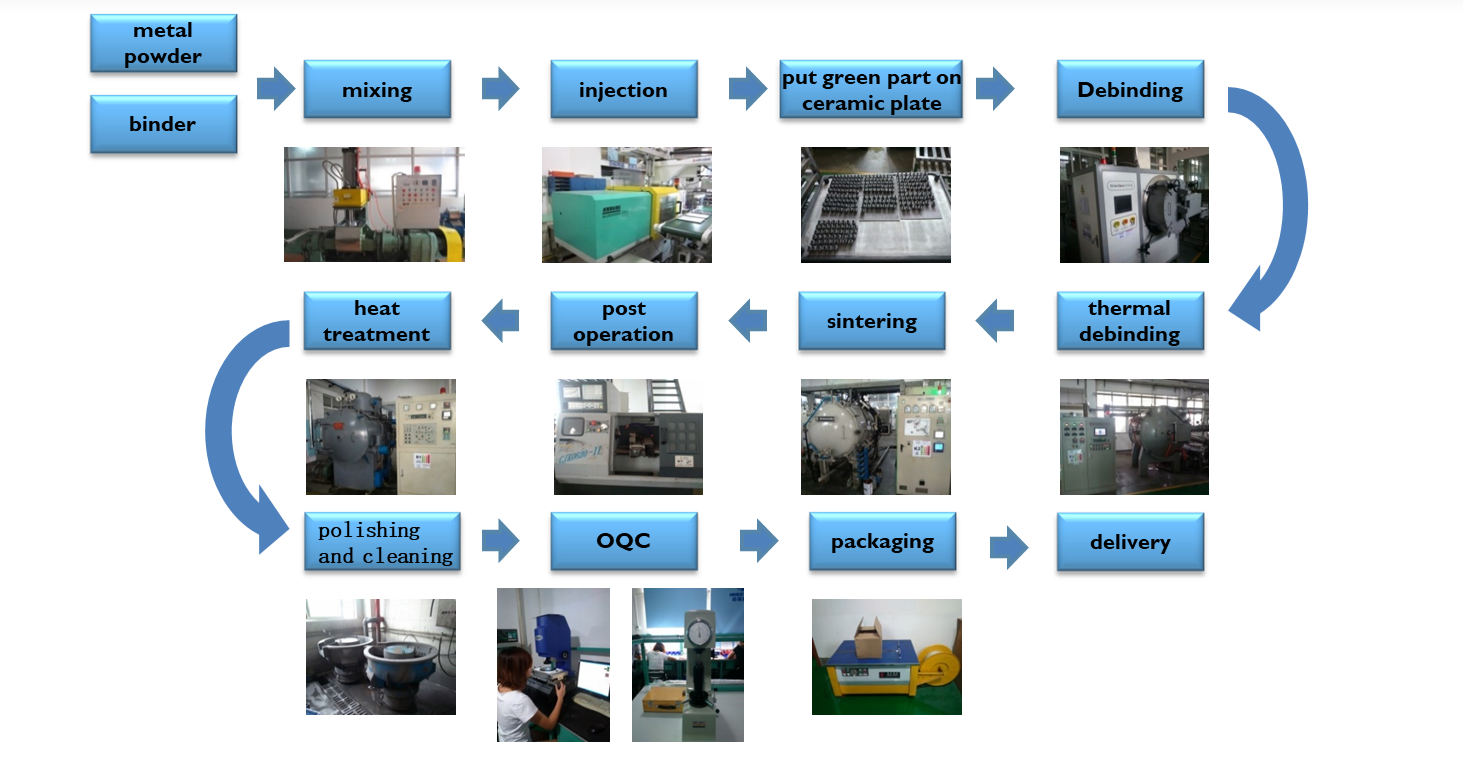

Firstly, the metal powder and the organic binder are mixed into the homogeneous feed under certain temperature; then feedstock is injected into the cavity of the mold by the injection molding machine in the state of heating and plasticizing. Forming billet, and then through chemical or solvent extraction method degreasing treatment, the final densification by sintering to be the final product.

Process Feature

Dimension

MIM

Powdered Metal

Investment Casting

Machining

density

98%

88%

98%

100%

tensile strength

High

Low

High

High

surface finish

High

Medium

Medium

High

miniaturization

High

Medium

Low

Medium

thin wall ability

High

Medium

Medium

Low

complexity

High

Low

Medium

High

design flexibility

High

Medium

Medium

Medium

range of materials

High

High

Medium

High


Design, sampling & mass production one stop solution provider.
