CIM

Ceramic powder injection molding (CIM) is a combination of ceramic powder and binder through injection molding to get a certain strength and density of parts.

Application

CIM is widely used in the field of structural ceramics. The main products are: Y-TZP grinding ball, dispersing and grinding media, nozzle, ball valve seat, zirconia mold, micro-fan axis, optical fiber pin, fiber sleeve, drawing die and cutting tool, wear- Case and bracelet, bracelet and pendants, ball bearings, golf ball and other light-weight bat as well as other parts at room temperature wear-resistant. Ceramic products is the best choice to improve the texture.

Product Feature

1、High toughness
2、high bending strength
3、good abrasion resistance
4、good heat insulation performance
5、coefficient of thermal expansion is near to steel

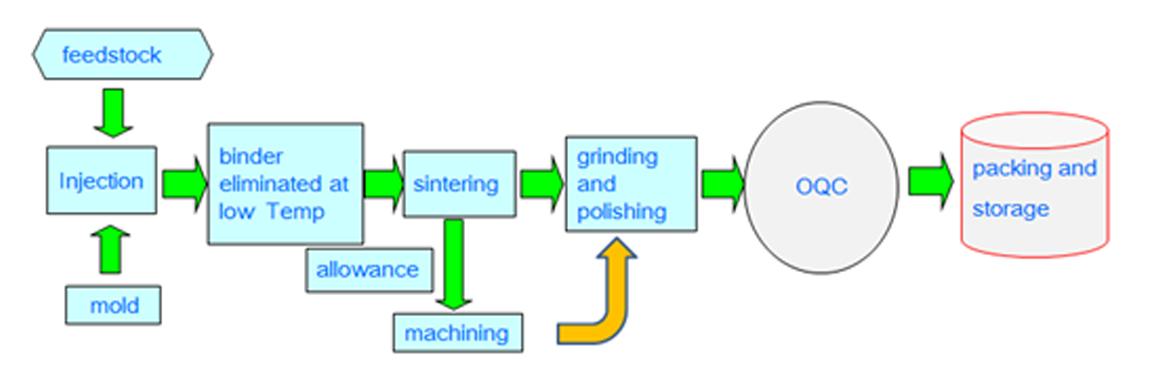

Process

Process Feature


Dimension Size

Dimension tolerance after Sintering

Dimension tolerance after Post operation

1-4mm

+/-0.03

+/-0.03

4-10mm

+/-0.04

+/-0.03

10-20mm

+/-0.05

+/-0.03

20-30mm

+/-0.07

+/-0.03

30mm-50mm

+/-0.08

0.05

50mm以上

+/-0.10

0.05

Planeness(mm)

0.02mm

0.005mm

Character

Generally Range

Special Range

Product Weight

0.1-100g

0.05-200g

Wall thickness

0.5-10mm

To 0.15mm


Design, sampling & mass production one stop solution provider.
